In today's competitive manufacturing landscape, leveraging advanced tooling techniques is pivotal for enhancing productivity. By integrating innovative materials, smart technologies, and optimized designs, manufacturers can achieve significant improvements in efficiency, quality, and cost-effectiveness.

1. Understanding the Critical Role of Tooling in Manufacturing

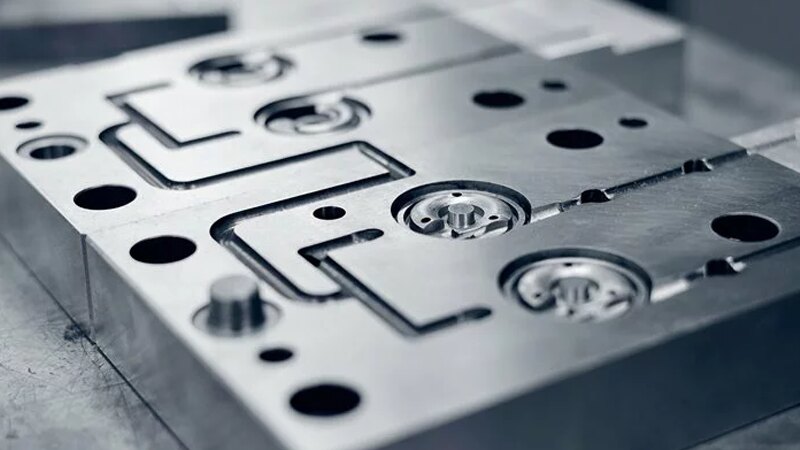

Tooling encompasses the various tools and equipment used in manufacturing processes, including cutting tools, molds, fixtures, and jigs. The evolution from manual tools to automated, precision instruments has revolutionized production capabilities, enabling higher accuracy and repeatability.

• Custom Tools: Designed for specific applications, offering tailored solutions for unique manufacturing challenges.

• Standard Tools: Versatile tools suitable for a range of applications, providing cost-effective solutions.

• Modular Tools: Comprising interchangeable components, allowing flexibility and adaptability in various processes.

Table 1: Comparison of Traditional vs. Advanced Tooling

Metric	Traditional Tooling	Advanced Tooling
Average Tool Life	~50 hours	120–150 hours
Cycle Time per Unit	7 minutes	4 minutes
Machining Tolerance	±0.1 mm	±0.02 mm
Maintenance Frequency	Every 3 days	Every 7–10 days
Total Cost Impact	Low initial, high lifetime	High initial, low lifetime

2. Advanced Tooling Materials and Coatings

The foundation of high-performance tooling lies in its composition — both the base material and its protective coatings. Together, these elements define a tool's heat resistance, wear life, cutting efficiency, and compatibility with different workpiece materials. The correct material-coating combination can yield double-digit gains in tool life and production output.

2.1 High-Performance Tooling Materials

Advanced tooling materials are engineered to withstand extreme mechanical and thermal stresses. Below are the most widely used materials in high-end manufacturing:

2.1.1 Carbide (Tungsten Carbide + Cobalt Binder)

• Properties: Extremely hard and wear-resistant; handles high cutting speeds and elevated temperatures (800–1000°C).

• Common Uses: Ideal for machining steel, cast iron, and non-ferrous metals at high speed.

• Benefits:

• High dimensional accuracy over long runs

• Good thermal conductivity reduces tool failure

Did You Know? Carbide tools maintain hardness at twice the temperature tolerance of High-Speed Steel (HSS), making them essential in modern CNC operations.

2.1.2 Ceramics

• Properties: Made from aluminum oxide or silicon nitride; withstands temperatures up to 1200°C.

• Applications: High-speed finishing of hardened steel, cast iron, and nickel-based alloys.

• Trade-Offs: Excellent wear resistance but brittle under shock or interrupted cuts.

2.1.3 CBN (Cubic Boron Nitride)

• Properties: Second only to diamond in hardness; chemically inert with ferrous materials.

• Use Case: High-speed machining of hardened steels (>HRC 55).

• Advantages:

• Excellent for dry machining

• Extremely long-lasting in finishing operations

2.1.4 PCD (Polycrystalline Diamond)

• Properties: Ideal for non-ferrous materials like aluminum, graphite, and composites.

• Strengths:

• Exceptional abrasion resistance

• Up to 10x tool life compared to carbide on aluminum

Note: PCD is not suitable for steel due to chemical reactivity at high temperatures with iron.

2.2 Next-Generation Tool Coatings

Coatings are applied via processes like PVD (Physical Vapor Deposition) and CVD (Chemical Vapor Deposition) to enhance surface hardness, reduce friction, and prevent adhesion or oxidation. Selecting the right coating can drastically affect both performance and economics.

2.2.1 TiAlN (Titanium Aluminum Nitride)

• Best For: High-speed dry cutting

• Advantages:

• Oxidation resistance up to 900°C

• Self-hardening layer formed during high-heat operations

• Typical Use: Milling, turning of hardened steels and alloy steels

2.2.2 AlCrN (Aluminum Chromium Nitride)

• Strengths:

• Excellent toughness and thermal fatigue resistance

• Ideal for applications where both strength and heat resistance are crucial

• Common Applications: Die and mold industries; wet and dry machining

2.2.3 DLC (Diamond-Like Carbon)

• Unique Benefit: Ultra-low friction coefficient (0.05–0.15)

• Use Cases: Non-ferrous, soft materials such as plastics, copper, and aluminum alloys

• Results:

• Smoother surface finishes

• Reduces build-up edge in sticky materials

2.2.4 TiCN (Titanium Carbonitride)

• Added Benefit: More wear-resistant than TiN; suitable for medium-speed machining.

• Used For: General-purpose machining, especially in interrupted cuts

Experimental Result: Tools coated with AlCrN in dry steel machining lasted 3x longer than uncoated carbide, with less tool chipping and oxidation.

2.3 Material-Specific Tooling Strategies

Matching the tool material and coating to the workpiece is key to unlocking optimal performance.

Workpiece Material	Recommended Tooling Material	Recommended Coating	Notes
Hardened Steel (HRC > 50)	CBN, Ceramic	TiAlN, AlCrN	Dry cutting preferred
Stainless Steel	Fine-Grain Carbide	TiAlN, AlCrN	Avoid work hardening
Aluminum Alloys	PCD, DLC-coated Carbide	DLC, Uncoated Carbide	Use sharp edges to prevent BUE
Composites (CFRP/GFRP)	PCD	Uncoated or DLC	PCD reduces fiber delamination
Cast Iron	Ceramic, Carbide	AlCrN	High-speed, dry possible

---

2.4 Emerging Innovations in Tool Materials

• Nanostructured Coatings: Grain size <50nm for superior hardness and oxidation resistance.

• Gradient Carbides: Tools with a hard outer core and tougher interior to balance strength and shock resistance.

• Textured Tool Surfaces: Micro-grooved coatings reduce chip adhesion and improve lubricant distribution.

R&D Highlight: Some experimental TiB₂ coatings show promise for aluminum machining by dramatically reducing built-up edge formation and improving tool longevity by up to 300%.

3. Smart Tooling and Industry 4.0 Integration

As manufacturing shifts toward a fully connected digital environment, smart tooling plays a vital role in enabling predictive, adaptive, and data-driven production. By embedding sensors and connectivity into cutting tools, jigs, and fixtures, tooling becomes an active part of the information ecosystem within a smart factory.

3.1 Real-Time Monitoring with Embedded Sensors

Modern tooling systems often include embedded micro-sensors that track:

• Temperature: Prevents overheating during high-speed operations.

• Vibration and Chatter: Detects potential tool wear or machine instability.

• Cutting Forces: Measures the stress exerted on the tool and material.

These sensors transmit data continuously to cloud-based or edge computing systems, enabling operators to make informed decisions in real-time.

3.2 Tool Condition Monitoring (TCM)

Tool Condition Monitoring systems interpret data from sensors to:

• Predict remaining tool life

• Issue alerts for preventive replacement

• Detect breakage or abnormal wear immediately

Example: A German automotive plant integrated TCM into its CNC line and reported a 22% drop in unexpected tool failures within the first 6 months.

3.3 Connectivity with Enterprise Systems

Smart tools interface directly with:

• Manufacturing Execution Systems (MES): For process optimization and performance tracking.

• Enterprise Resource Planning (ERP): For inventory and procurement automation.

• Digital Dashboards: Offering real-time insights for supervisors and engineers.

The result is a more resilient, self-regulating production system that reacts dynamically to internal and external changes.

4. Tool Design Optimization Using Simulation and AI

Tool performance begins with intelligent design. With the integration of AI and advanced simulations, manufacturers can virtually test and improve tools before a single component is machined.

4.1 CAD/CAM Software and Parametric Design

Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) platforms allow:

• Rapid iterations of tool geometries

• Adjustment of rake angles, flute designs, or insert profiles

• Integration with machine kinematics and toolpaths

This shortens the design-to-production cycle significantly, especially when paired with digital libraries of tool parameters.

4.2 Finite Element Analysis (FEA) for Tool Stress Testing

FEA simulations apply physical loads such as:

• Axial and radial cutting forces

• Thermal gradients during dry machining

• Wear patterns under continuous usage

Engineers use these simulations to identify stress concentration zones and material fatigue points. As a result, tools can be optimized for:

• Better heat dissipation

• Higher load endurance

• Longer cutting performance

4.3 AI-Driven Predictive Modeling

Artificial Intelligence enhances tool design by learning from:

• Historical wear patterns

• Machine logs and spindle load data

• Tool failure incidents

Machine learning models can predict:

• When a tool will fail under a new application

• Which design changes will yield optimal performance

• Which coatings are best for specific materials and speeds

Case in Point: A precision machining company in Japan used AI to reduce design lead time by 35%, and extended tool life by 20% using simulations informed by historical failures.

4.4 Digital Twins and Virtual Validation

Digital twins are full-scale virtual replicas of physical tools that simulate:

• Behavior under real-world machine conditions

• Effects of micro-vibrations and thermal expansion

• Toolpath deviations and real-time wear progression

By testing these digital twins in cloud environments, manufacturers can:

• Eliminate prototyping costs

• Fine-tune geometries before production

• Simulate thousands of tool-material-speed combinations

5. Additive Tooling and Hybrid Manufacturing Techniques

Advanced tooling isn't just about better materials or design — it also involves revolutionary methods of making the tools themselves. Additive and hybrid manufacturing are transforming how quickly and flexibly tool systems can be developed and deployed.

5.1 Additive Manufacturing for Tooling Components

3D printing enables rapid creation of:

• Custom fixtures and soft jaws for complex workpieces

• Internal cooling channels inside dies and drill bits

• Lightweight modular components for robotic end-effectors

Benefits:

• Speeds up prototyping by up to 80%

• Reduces tooling costs for low-volume or custom jobs

• Enables designs that are impossible to machine (e.g., lattice structures)

Example: Boeing uses 3D-printed drill templates in aircraft production, cutting production preparation time by 30%.

5.2 Hybrid Manufacturing: Additive + Subtractive in One System

Hybrid machines combine:

• CNC milling or turning (subtractive)

• Directed Energy Deposition (DED) or Binder Jetting (additive)

Applications:

• Adding features onto base tools (e.g., wear-resistant tips)

• Refurbishing worn tool surfaces with additive repair

• Creating complex parts in fewer setup operations

5.3 Limitations and Considerations

• Additive materials may lack the hardness of forged metals — post-processing (e.g., heat treatment, coating) is often necessary.

• Precision tolerance (<0.01mm) may still require final finishing via CNC.

• Higher initial machine cost, though offset by savings over time.

6. Cost-Benefit Analysis of Advanced Tooling Investments

Investing in advanced tooling yields long-term benefits, including reduced operational costs, improved product quality, and increased competitiveness.

• Return on Investment (ROI): Though initial costs may be higher, the efficiency gains and reduced downtime lead to substantial savings over time.

• Total Cost of Ownership (TCO): Considering factors like maintenance, lifespan, and productivity helps in evaluating the true value of tooling investments.

Table 3: Smart Tooling Features and Benefits

Smart Feature	Productivity Impact
Real-Time Monitoring	Reduces unplanned downtime by up to 25%
Predictive Maintenance Alerts	Lowers tool failure rates by 40%
ERP/MES Integration	Improves responsiveness and decision-making
Automated Performance Reports	Enhances product quality and process feedback

FAQ Section

Q1: What is the most cost-effective tooling upgrade for small manufacturers?

A1: Carbide-coated tools offer a balance between cost and performance, providing durability and efficiency without significant investment.

Q2: How does predictive maintenance extend tool life?

A2: By monitoring tool conditions in real-time, predictive maintenance identifies wear patterns early, allowing for timely interventions that prolong tool lifespan.

Q3: Are smart tooling systems compatible with legacy equipment?

A3: Many smart tooling solutions are designed for easy integration with existing machinery, often requiring minimal modifications.

Q4: Which industries benefit most from advanced tooling?

A4: Industries such as aerospace, automotive, medical devices, and electronics, where precision and efficiency are critical, gain significant advantages from advanced tooling.

Q5: Do modern tools contribute to sustainability?

A5: Yes, advanced tools often result in reduced material waste, lower energy consumption, and longer tool life, contributing to more sustainable manufacturing practices.

Conclusion

Embracing cutting-edge tooling techniques is essential for manufacturers aiming to enhance productivity and maintain a competitive edge in today's rapidly evolving industrial landscape. By leveraging innovations in materials, smart technologies, AI-driven design, and hybrid manufacturing, companies can dramatically improve efficiency, reduce operational costs, and increase product quality.
