In industrial environments where speed, precision, and efficiency are paramount, the vibrating screen conveyor stands out as a powerful material handling solution. Combining transport and screening functions in a single system, it reduces operational complexity, enhances product quality, and minimizes energy and labor costs.

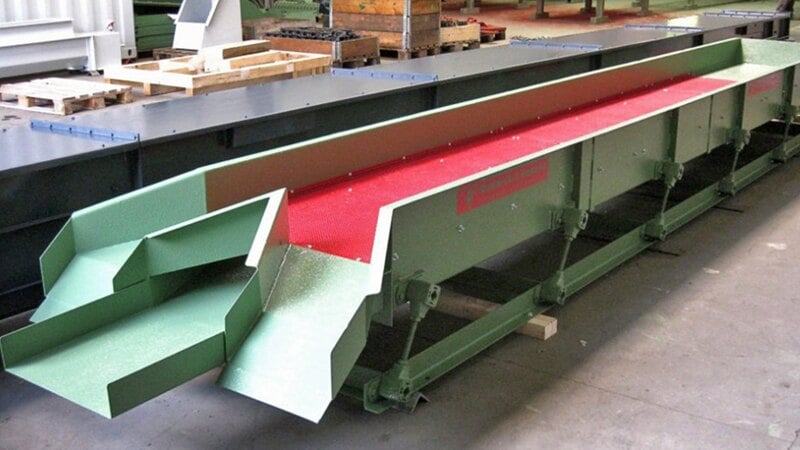

1. What Is a Vibrating Screen Conveyor?

A vibrating screen conveyor is a piece of industrial equipment designed to move and screen materials simultaneously. Unlike traditional conveyors that merely transport materials from point A to point B, these systems utilize vibratory motion to separate, classify, or dewater materials while conveying them.

Main Components:

• Vibrating Drive or Motor: Creates the vibratory motion (linear, circular, or elliptical).

• Screen Deck or Mesh: Separates materials by size or type.

• Frame and Base: Supports the conveyor and absorbs mechanical stress.

• Feed Chutes and Hoppers: Guide materials onto the screen.

• Discharge Points: Segregated outputs for different particle sizes or materials.

These conveyors are widely used in industries such as:

• Mining (e.g., separating rocks and minerals)

• Food processing (e.g., sorting grains or nuts)

• Agriculture (e.g., sifting and de-dusting seeds)

• Recycling (e.g., sorting glass, plastic, and metals)

Table 1: Comparison of Conveyor Types

2. How It Works

The principle behind a vibrating screen conveyor lies in controlled vibration. This vibration is created by electric motors or mechanical exciters that generate linear or elliptical movement along the screen.

Vibratory Motion Mechanics

• Linear Vibration: Moves materials in a straight path—ideal for precision and fast throughput.

• Circular/Elliptical Vibration: Offers multi-directional motion—better for spreading and stratifying materials.

As material is fed onto the vibrating screen:

1. Larger particles remain on the top screen and move toward one outlet.

2. Smaller particles fall through mesh openings, moving to a different discharge path.

3. The conveyor's oscillating action propels materials forward at a controlled rate.

You can adjust the amplitude (intensity) and frequency to accommodate different materials based on weight, size, and moisture content.

3. Key Benefits of Using a Vibrating Screen Conveyor

a. Dual Functionality: Transport and Screening

The most significant advantage is its ability to move and classify materials simultaneously, reducing the need for separate screening equipment.

b. Reduced Downtime and Maintenance

Fewer moving parts than belt or screw conveyors mean less wear and tear. Self-cleaning features on screens also reduce clogging and buildup.

c. Improved Product Quality

The consistent vibration ensures better particle separation and size classification, improving end-product uniformity.

d. Energy Efficiency

Compared to rotating machinery, vibrating conveyors use less energy while delivering high throughput.

e. Space-Saving Design

Because they consolidate multiple steps into one system, vibrating screen conveyors take up less floor space, ideal for constrained plant layouts.

f. Dust and Noise Control

Many vibrating systems come with enclosed designs or dust extraction ports, improving workplace air quality and reducing noise pollution.

4. Industry-Specific Advantages

Mining and Minerals

• Can handle abrasive and heavy bulk materials

• Effective for wet and dry classification

• Reduces overloading and enhances throughput in crushers and mills

Food Processing

• Gentle conveying preserves delicate materials like chips, cereals, or dried fruit

• Allows inline sieving, dewatering, or de-oiling

• Made with stainless steel and hygienic designs

Recycling

• Separates plastics, metals, and glass efficiently

• Compatible with magnetic separators and optical sorters

• Handles high volumes with minimal manual sorting

Agriculture

• Sifts grains, legumes, and seeds for size and debris removal

• Removes dust and husks through airflow and mesh systems

• Reduces need for pre-cleaning machines

5. Design and Customization Options

One of the strengths of vibrating screen conveyors is their modular and customizable design:

• Screen Configurations: Single, double, or triple decks for multi-stage separation

• Mesh Sizes: Customizable for exact separation ranges

• Amplitude/Frequency Adjustability: For different material behaviors

• Incline Angle: Flat or sloped depending on application

• Materials of Construction: Mild steel, stainless steel (for food and pharma), or wear-resistant coatings

• Dust Enclosures or Hoods: For health and safety compliance

• Feeder Integration: Vibratory feeders can regulate flow rate to prevent overload

6. Maintenance and Operational Considerations

Maintenance Needs

Although robust, these systems still require periodic checks:

• Inspect screen wear (especially for abrasive materials)

• Check drive motor alignment and mountings

• Tighten bolts regularly to avoid loosening due to vibration

• Clean screen decks to prevent clogging (especially with sticky or wet materials)

Predictive Maintenance

Modern systems can include:

• Vibration monitoring sensors

• Load sensors

• Preventive alerts through programmable logic controllers (PLCs)

These reduce downtime and improve operational predictability.

FAQ

1. Can vibrating screen conveyors handle wet or sticky materials?
Yes, especially when designed with anti-clogging screens and higher amplitude vibration settings. However, very sticky materials may require pre-treatment or heating.

2. What maintenance is required?
Routine checks include screen condition, drive function, alignment, and cleaning. Some systems also support sensor-based predictive maintenance.

3. Are vibrating conveyors suitable for high-volume operations?
Yes. They are designed for continuous operation and can handle large volumes efficiently—particularly in mining and recycling.

4. Can multiple screens be used in one system?
Absolutely. Many systems use multiple decks to separate materials into 2–4 particle size categories in a single pass.

Conclusion

Vibrating screen conveyors represent a smart, efficient upgrade for industries looking to optimize their material handling processes. With their dual functionality, energy efficiency, and customizable features, they streamline production lines while improving safety and product quality. Whether in mining, agriculture, recycling, or food manufacturing, these systems provide a reliable solution that integrates screening and conveying into one seamless operation.
